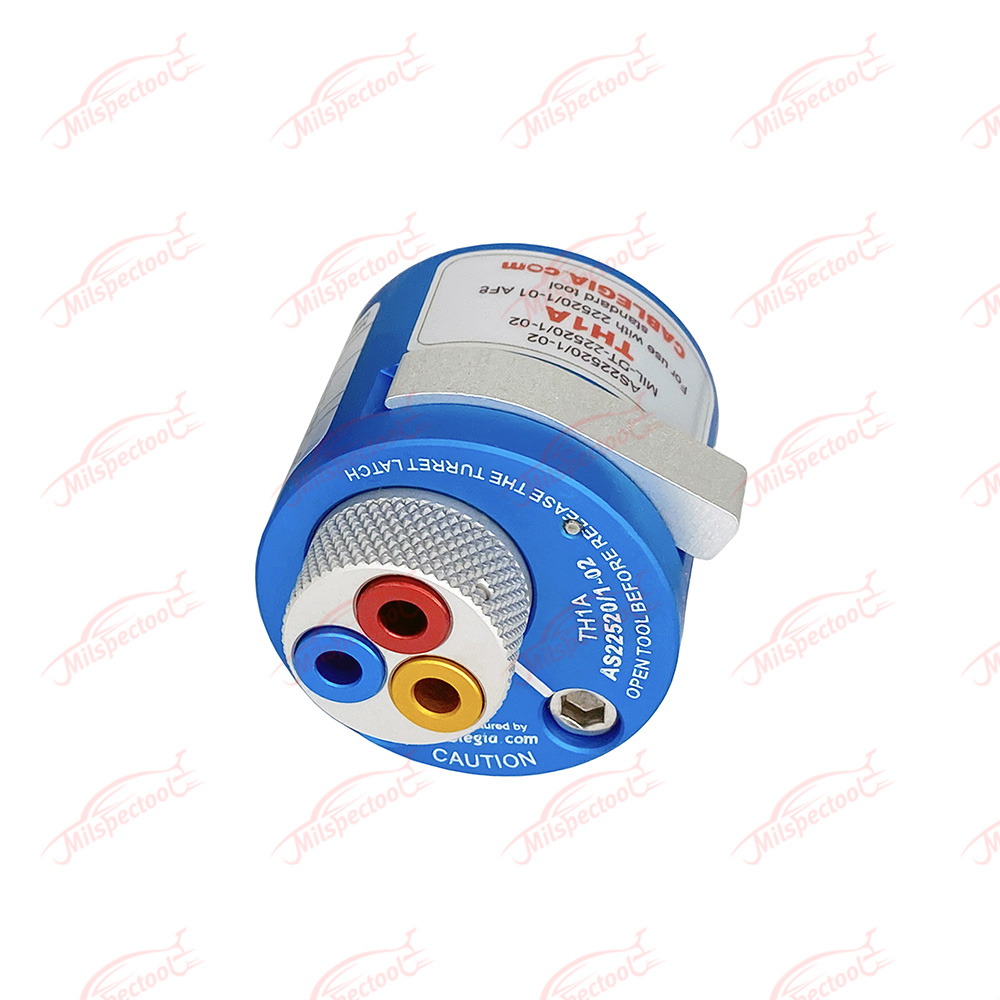

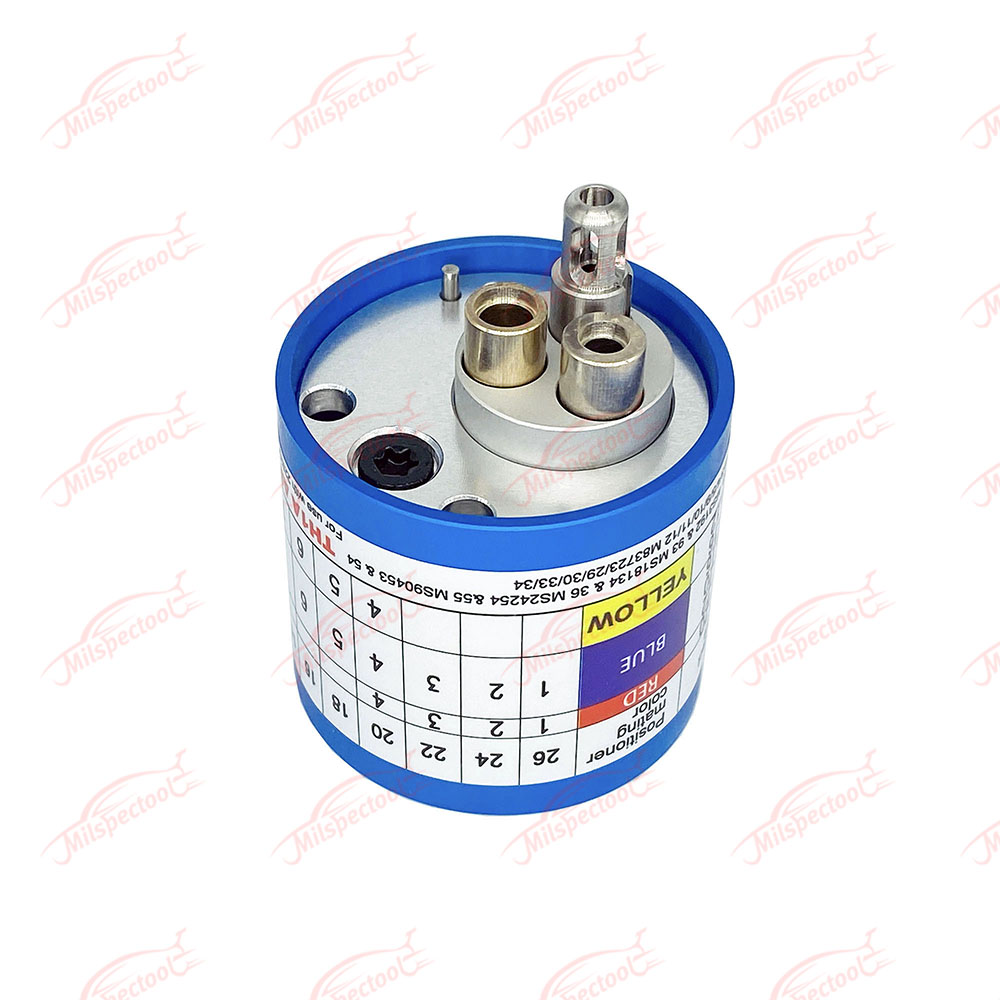

TH1A M22520/1-02 POSITIONER FOR AF8 CRIMP TOOL

Item Number

· TH1A (M22520/1-02)

· Astro Positioner No.: 615709

Item Including

· Positioner ×1, Color: Blue

Product Parameter

· Turret Positioner for Crimp Tool AF8

· Used in Avionics and Motorsport Wiring

· Qualified to MIL-DTL-22520 and AS22520

· Wire Range: 12-26 AWG (0.128-3.31mm sq)

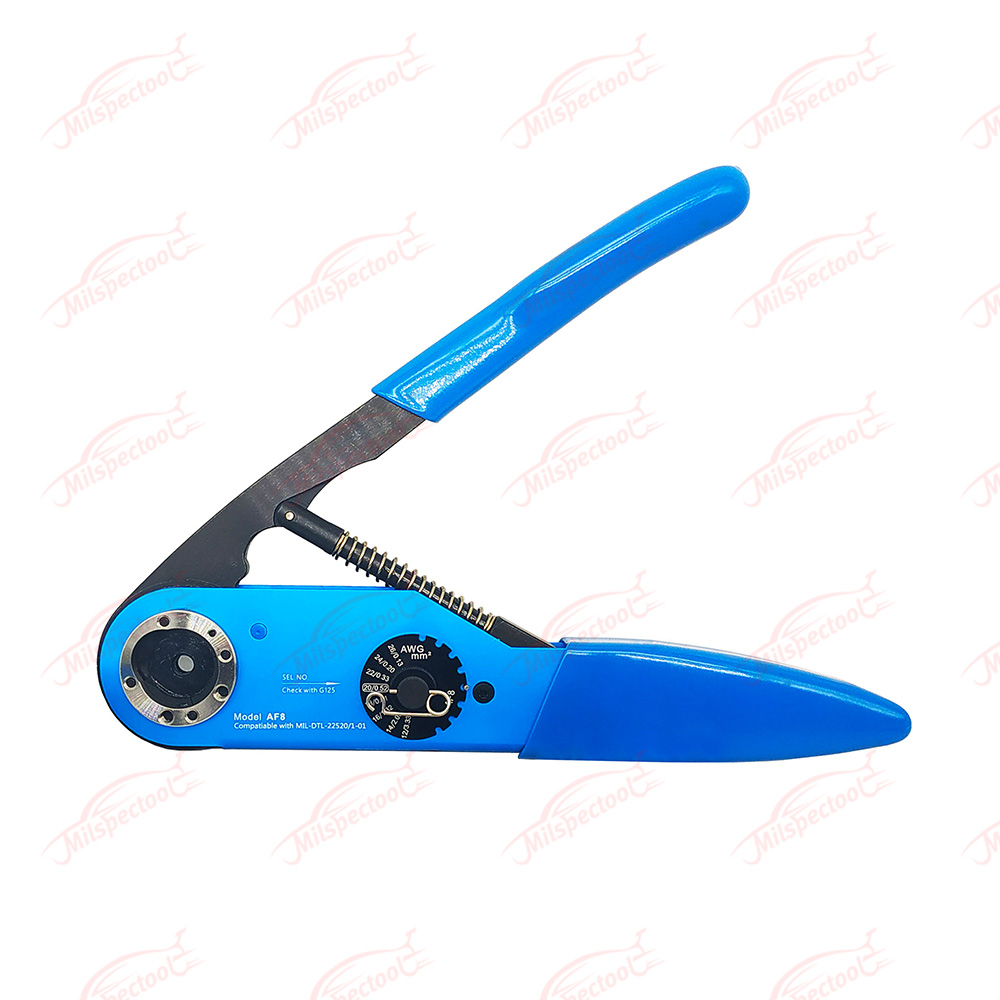

· Can Match Daniels/DMC AF8 Crimp Tool

· Diameter: 37.85mm  Height: 62.0mm

· Unit Weight: 78g / 0.172lb

Matched Contacts

MIL-C-26482 Series II

· Size 20   Pin M39029/4-110, Socket M39029/5-115

· Size 16   Pin M39029/4-111, Socket M39029/5-116

· Size 12   Pin M39029/4-113, Socket M39029/5-118

Deutsch Industrial DTM/DT/DTP

· DTM   Size 20    Pin 0460-202-20141, Socket 0462-201-20141

· DT    Size 16    Pin 0460-202-16141, Socket 0462-201-16141

· DTP   Size 12    Pin 0460-204-12141, Socket 0462-203-12141
